Product introduction            It gives full play to the advantages of LED point light source, which can facilitate the change effect of synchronized seven color change, segmented change, scanning, cartoon character display and so on. Thus it can make its application more flexible; it is widely used in light emitting, special screen, exterior wall lighting, background wall and so on; its surface is strong and durable with the use of PC white shell. Anti UV aging, epoxy resin sealing 100% waterproof; make the lamp and glue completely isolated, light brighter, more perfect to solve the dark area of the traditional 3. light point light center; its size is small and beautiful, the drilling installation is more convenient and firm, bearing the plate 0.5-4MM, can be arbitrarily cut and connected, so installation and maintenance can make the installation maintenance even more. Easy to add; scientific waterproof treatment scheme, outdoor environment is also competent (waterproof grade IP65).            Product Specification GMC30 Product Name: 3CM Hemispherical Point Light Source            Product Model Lamp Number/String LED Package Color Chip Specification Size (mm) Wavelength            (color temperature) luminance (mcd) / illuminance (LUX) drive voltage (V) power (W) angle            (C) working temperature (C)            GMC30 25 mm 30 full color / monochromatic 30 x 35 RGB/            Monochromatic 50-62 DC12 0.72120 -35 - 75            Product installation instructions            The actual size of the product (mm) Shell material Shell color (outside) Injection / Filling Protection Grade Total Weight (g)            30 x 25mm plastic latex white epoxy resin IP65 13g            Picture 1

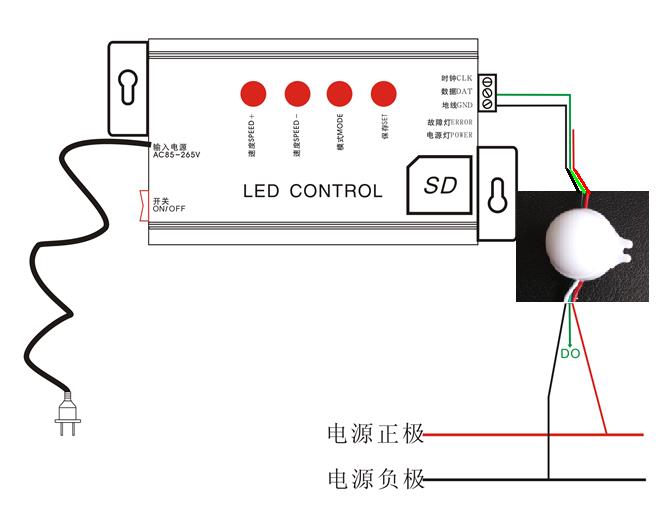

    Installation method:            Perforation of 1 and 30MM            Product connection mode            1. Wiring diagram:

    2. Connection instructions:            Point control 1903 F30 full color point source: the power supply is 12V DC power supply, the red line is connected with the positive pole of the 12V power, the transparent line is connected with the 12V power source (GND), and the intermediate transparent line is connected to the input / output (DAT) of the data signal.            F30 monochromatic light source: the application of the power is 12V DC power, the red line is connected to the 12V power pole, and the white line is connected to the power supply negative pole
