It gives full play to the advantages of LED point light source, which can facilitate the change effect of synchronized seven color change, segmented change, scanning, cartoon character display and so on, which makes its application more flexible; it is widely used in light emitting, special screen, exterior wall lighting, background wall and so on; its surface uses our company to develop PC lens independently. The shell, sturdy and durable UV aging, ultrasonic and epoxy resin sealing 100% waterproof, and the appearance of the lens more beautiful, more able to protect the lamp, so that the lamp and glue is completely isolated, bright light is higher, and can perfect the dark area of the traditional 6 light point light center; its size is small and beautiful, the design of the teeth, the use of drill Kong An The installation is more convenient and firm, bearing plate 0.5-4MM, can be cut and connected arbitrarily, making the installation and maintenance easier; the scientific waterproof treatment plan, the outdoor environment is equally competent (waterproof grade IP65).            Product specification GMC50-7D Product Name: 5 cm point light source 1903 full color.            Product Model Lamp Number/String LED Package Color Chip Specification Size (mm) Wavelength            (color temperature) luminance (mcd) / illuminance (LUX) drive voltage (V) power (W) angle            (C) working temperature (C)            GMC50-7D 25, 50 full color, 50 x 60 RGB 68-72 DC24 1.5W 125-40 - 80            Product installation instructions            The actual size of the product (mm) Shell material Shell color (outside) Injection / Filling Protection Grade Total Weight (g)            50 x 12mm plastic transparent PU glue transparent IP68 20g            Picture 1

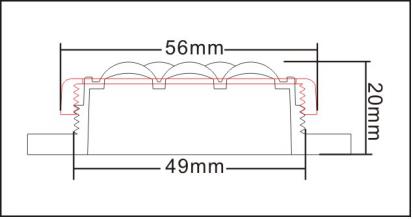

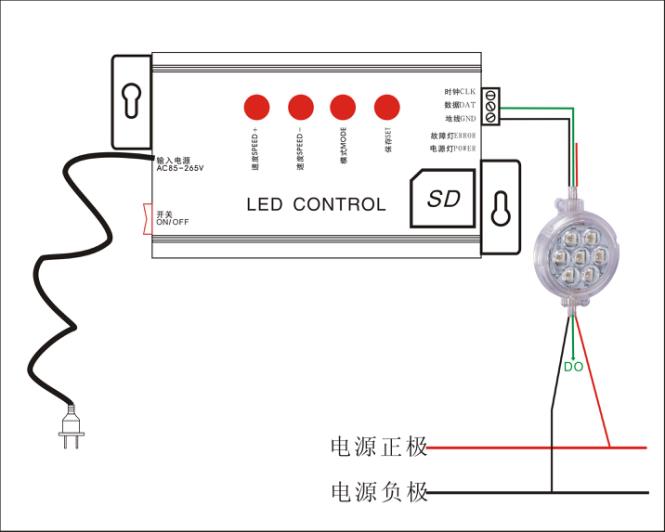

Installation method:            Perforation of 1 and 50MM            Product connection mode            1. Wiring diagram:

2. Connection instructions:            Point control 1903 F50 full color point source: the power supply is 24V DC power supply, the red line is connected with the positive pole of the 24V power, the transparent line is connected with the 24V power source (GND), and the intermediate transparent line is connected to the input / output (DAT) of the data signal.
