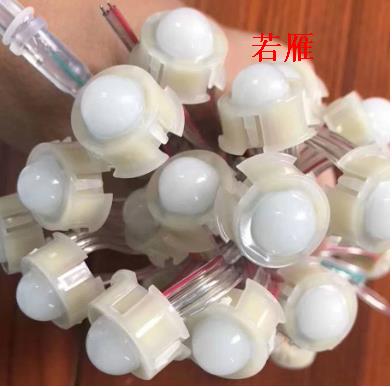

t gives full play to the advantages of LED point light source, which can facilitate the change effect of synchronized seven color change, segmented change, scanning, cartoon character display and so on. Thus it can make its application more flexible; it is widely used in light emitting, special screen, exterior wall lighting, background wall and so on; its surface uses a PC integral shell, sturdy. With anti UV aging, epoxy resin sealing 100% waterproof; complete isolation of lamp and glue, high brightness, low attenuation, good color, good light color consistency, easy to make, flexible and changeable; its volume is small and beautiful, the installation of drilling holes is more convenient and firm, and the load-bearing board material 0.5-4MM can be cut and connected arbitrarily. It makes installation and maintenance easier. Scientific waterproof treatment scheme, male and female joints are all waterproof joints, outdoor environment is also competent (waterproof grade IP65).            Product specification GMC20-1D5050 Product Name: 2CM point source            Product Model Lamp Number/String LED Package Color Chip Specification Size (mm) Wavelength            (color temperature) luminance (mcd) / illuminance (LUX) drive voltage (V) power (W) angle            (C) working temperature (C)            GMC20 25 mm 20 full color / monochromatic 20 x 13 RGB/            Monochromatic 20-26 DC5V 0.3W 120-35 - 75            Product installation instructions            The actual size of the product (mm) Shell material Shell color (outside) Injection / Filling Protection Grade Total Weight (g)            20 x 13mm plastic latex white epoxy resin IP65 13g            Picture 1

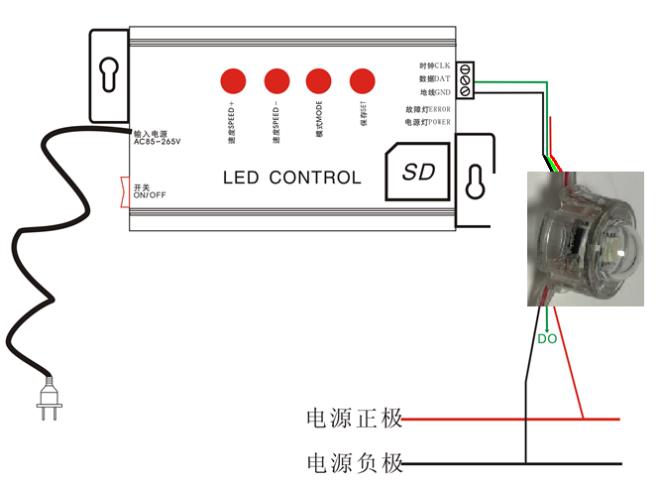

     Installation method:            Perforation of 1 and 20MM            Product connection mode            1. Wiring diagram:

       2. Connection instructions:            F20 full color point light source: the power supply is DC5V DC power supply, the red line is connected with the positive pole of the 5V power, the transparent line is connected with the 5V power source (GND), and the intermediate transparent line is connected to the input / output (DAT) of the data signal.            F20 monochromatic light source: the application of the power is 12V DC power, the red line is connected to the 12V power pole, and the white line is connected to the power supply negative pole.
