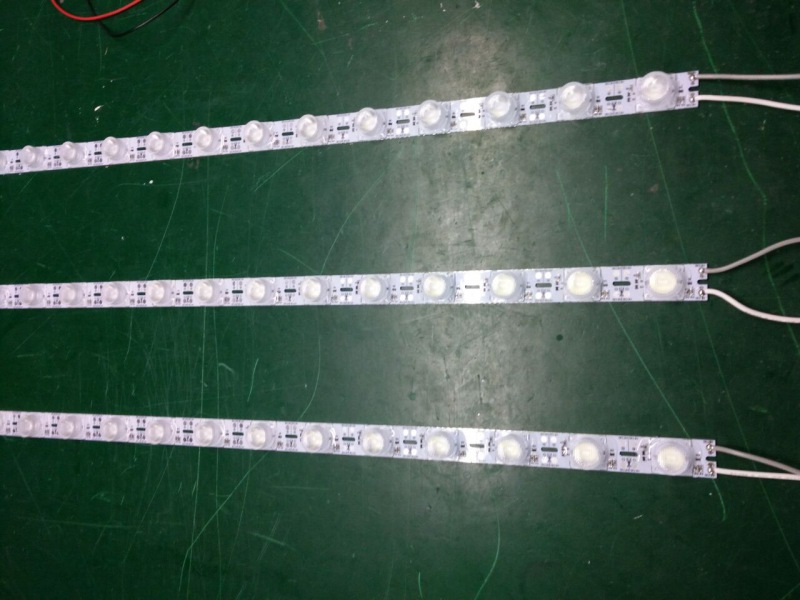

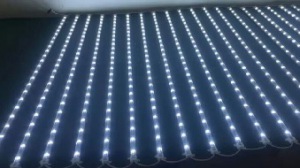

Product specification            Customer Name:            Product model: GM1000-18L3030            Product Name: 3030 side lighting strip            Product Description: 18 30LED with lens, 12V power supply, constant voltage


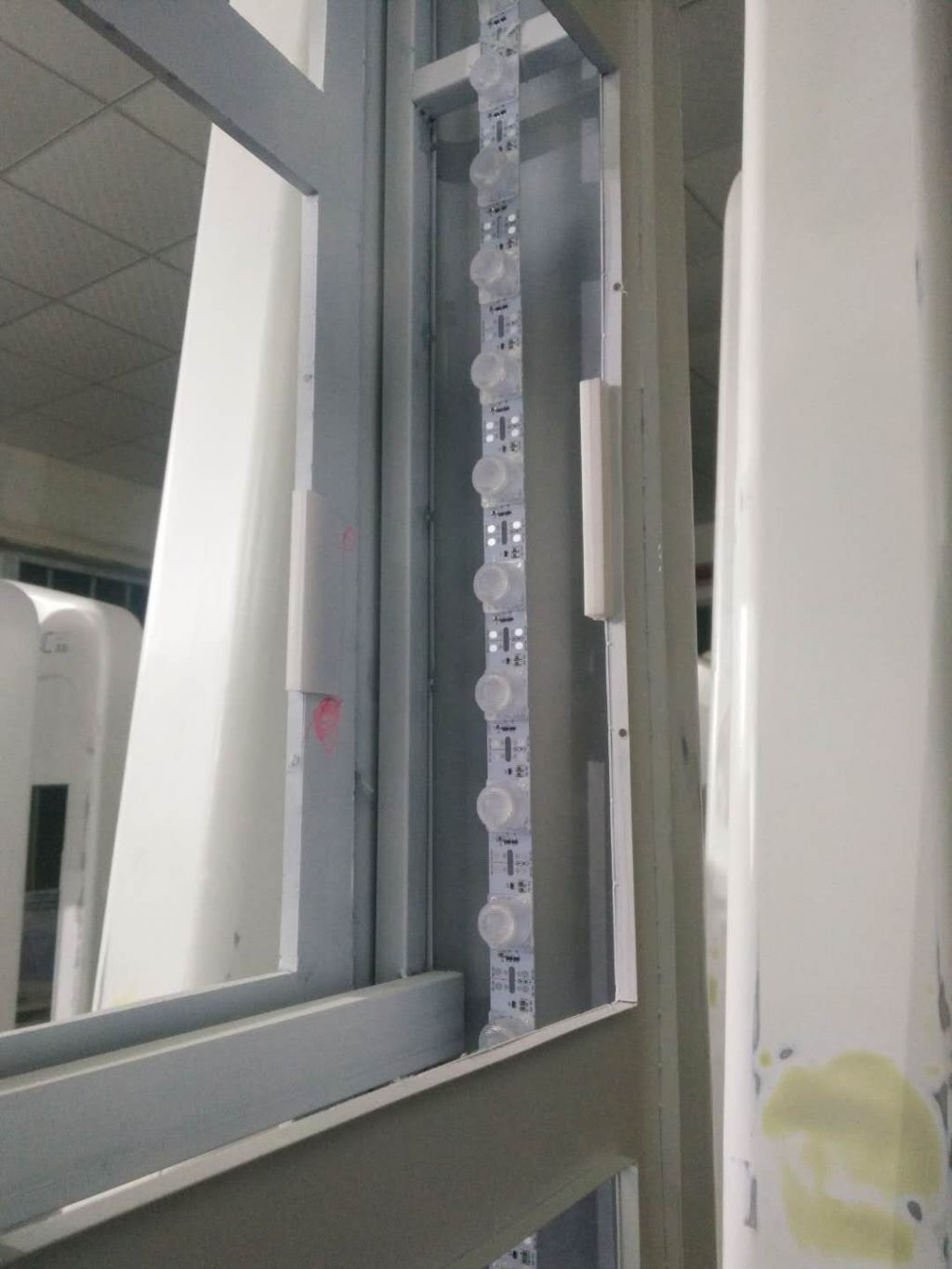

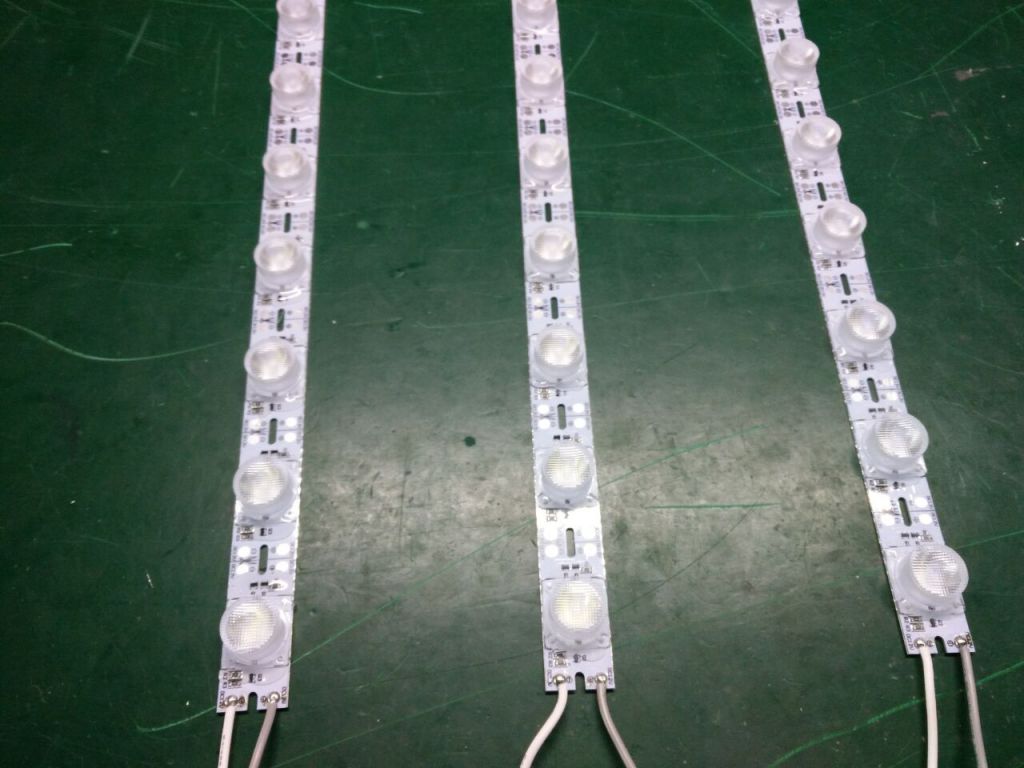

 1. Product characteristics:            Using constant voltage 12V power supply, the bulb current is stable, and the lamp life is longer.            A set of 16            Adopt brand 3030 patch LED, luminance light efficiency high;            Adopting high thermal conductivity aluminum substrate, good heat dissipation, low light decay and long life.            The lamp body adopts excellent superconducting thermal aviation aluminum material and high heat dissipation design.            Using 18AGW wire, the current loss is small.            LED add lens to make the light more aggregate and achieve the best angle of view.            External power supply, high power factor, high conversion efficiency and good stability.            Two. Application scope:            1, widely used in 8-35CM thickness advertising light box lighting facilities: 2. city bus platform, large stores, chain convenience stores;            3. office, conference room and other office buildings lighting; 4. exhibition hall, library, school, factory, airport, car park and other public lighting;

Three. Light source parameters:            ` photoelectric parameter '            Model LED light source luminous color, color temperature, voltage (V) power (W) luminous flux            (LM) light effect (LM/W) luminescence angle            (degree)            QHSS1000-18W3030 SMD3030            Seoul chip            white light            8000-10000K 12262000 LM 70 20X45            Other parameters            Standard cascade number (PCS) lens material drive mode weight (1 pcs/g) service life, external dimensions, working temperature (c), protection level            2 PMMA constant voltage 12V for more than 952 years 1000**27*14 -25-+70 IP20            Note: 1. the temperature of the test environment is 25 + 2.            More than 2. is the actual test data of the integral ball.            3. the lamp bar can be connected in series for 2 meters. When it exceeds 2 meters, it must supply 2 terminals. That is to say, every 2 meters must connect the power mainline once.            Four, spot map and light distribution curve:            Light distribution curve            Five. Connection schematic:            Six. Installation instructions:            Before installing the product, ensure that the installation surface is clean.            The mainline requirement of power supply is more than 6 square mm.            When using the schematic diagram of connection schematic (power supply at both ends), the number of standard couplet of light bar is 4pcs, and it can not be oversized. Users can also be cut individually according to the actual needs.            When the light bar is installed, it is strictly prohibited to use adhesive tape for installation. It can be fixed on either side by neutral glass glue or by screws.            When the lamp bar and the light bar need to be connected, the power cord between the two modules is cut in the middle of the slanting tongs and the skin is peeled around 10mm, and the wires of the corresponding color (red line connected to the power source, the white line connected to the negative pole) are twisted into one strand, then the connection head is unscrewed for protection, and the final inspection of the power line is twisted into the wiring. It is advisable to unplug the power cord from the wiring head without hand.            When the tail light bar is exposed to the wire conductor, the two power lines are peeled for about 10mm by a diagonal pliers and twisted into the wiring head for insulation protection.            To ensure waterproof and anticorrosion, after the power line is twisted into the wiring head, it is suggested that a single component of silica gel (or neutral glass glue, or water repellent grease) is injected into the wiring head to cover the exposed copper wire of the power line for protection.            The lamp can not be completely exposed in the open air.            It is recommended that the switch power supply (with short circuit protection, over voltage protection and over current protection) be passed through the relevant safety certification.            Seven. Packing Description:            Each carton is loaded into the 100pcs module.            The size of the carton: 1200*285*250;            The quantity and weight of the above packaging are only for graphic packing. There will be discrepancy in the quantity and weight of packages when other packages are used.            [cautions]            1. take care of light and light in transportation and handling;            2., it should not be applied in corrosive, inflammable and explosive places.            3. in order to avoid the danger of electric shock, please cut off the power supply during installation, commissioning and removal.            4. do not install near the heat source, so as not to increase the lamp temperature and damage the lamps and lanterns.            5. ensure that all joints are connected correctly and reliably.            6., without permission, the product can not be opened without permission.            7. disconnect the power when installing or disassembling maintenance.            8. if there is any doubt about this product, please consult with the engineer who holds the qualification certificate.
