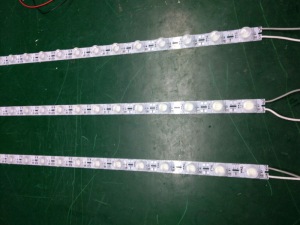

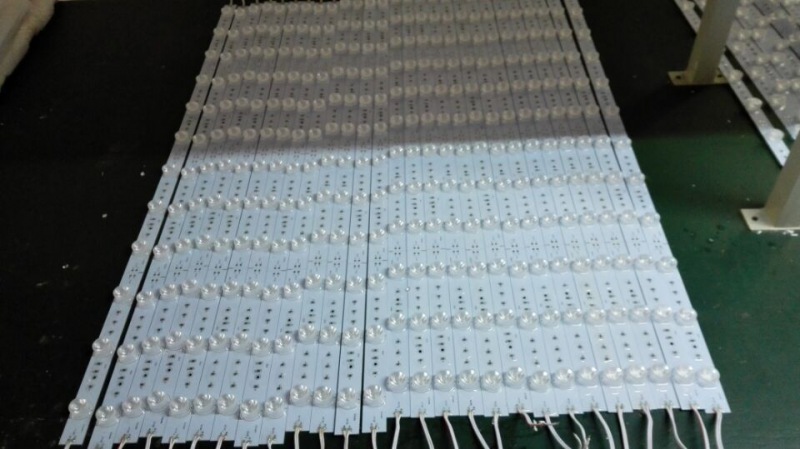

Product specification            Customer Name:            Product model: GMBT1000-12L3535            Product Name: 3535 side lighting strip            Product Description: 12 3535 patch LED, plus lens, power supply 12V, constant voltage

1. Product characteristics:            Using constant voltage 12V power supply, the bulb current is stable, and the lamp life is longer.            3 sets of lights can be cut at 0.25, and 2 meters per item.            Adopt brand 3535 patch LED, luminance light efficiency high;            Adopting high thermal conductivity aluminum substrate, good heat dissipation, low light decay and long life.            The lamp body adopts excellent superconducting thermal aviation aluminum material and high heat dissipation design.            Using 18AGW wire, the current loss is small.            LED add lens to make the light more aggregate and achieve the best angle of view.            External power supply, high power factor, high conversion efficiency and good stability.            Two. Application scope:            1, widely used in 5-35CM thickness advertising light box lighting facilities: 2. city bus platform, large stores, chain convenience stores;            3. office, conference room and other office buildings lighting; 4. exhibition hall, library, school, factory, airport, car park and other public lighting;

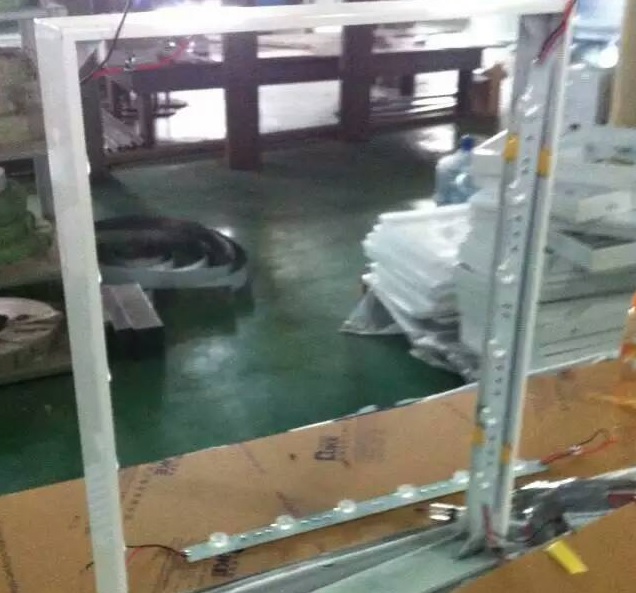

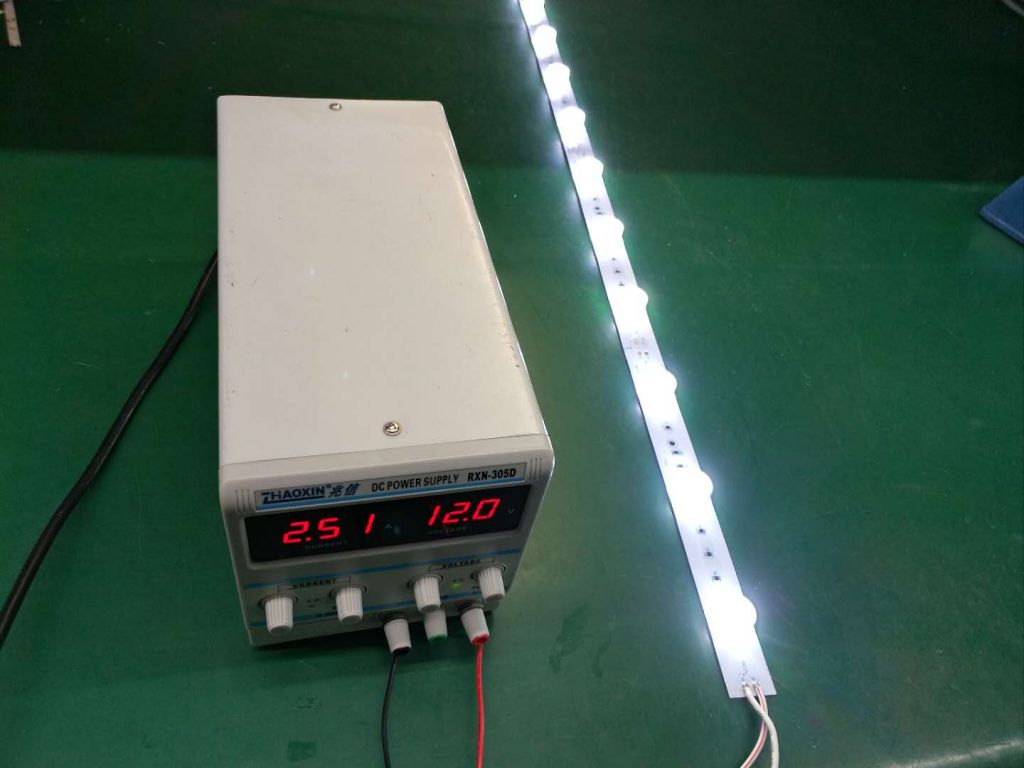

 Three. Light source parameters:            ` photoelectric parameter '            Model LED light source luminous color, color temperature, voltage (V) power (W) luminous flux            (LM) light effect (LM/W) luminescence angle            (degree)            QHSS1000-12W3535 SMD3535            white light            9000-10000K 1233 2600lm 70 10X30 or 10X60            Other parameters            Standard cascade number (PCS) lens material drive mode weight (1 pcs/g) service life, external dimensions, working temperature (c), protection level            2 (two head power supply) PMMA constant voltage 12V for more than 952 years 1000**28*15 -25-+70 IP20            Note: 1. the temperature of the test environment is 25 + 2.            More than 2. is the actual test data of the integral ball.            Four, spot map and light distribution curve:            Light distribution curve            Five. Connection schematic:            Six. Installation instructions:            Before installing the product, ensure that the installation surface is clean.            The mainline requirement of power supply is more than 6 square mm.            When using connection schematic plan, the standard number of light bar is 2pcs, and it should not be oversized. Users can also be cut individually according to the actual needs.            When the lamp bar is installed, it is first torn off the back of the model paper at the bottom of the module at the bottom of the module. It is attached to the lamp box or the advertisement logo to be fixed initially. Then, it can be fixed by using neutral glass glue on both sides of the module, and can also be fixed with the screw.            When the lamp bar and the light bar need to be connected, the power cord between the two modules is cut in the middle of the slanting tongs and the skin is peeled around 10mm, and the wires of the corresponding color (red line connected to the power source, the white line connected to the negative pole) are twisted into one strand, then the connection head is unscrewed for protection, and the final inspection of the power line is twisted into the wiring. It is advisable to unplug the power cord from the wiring head without hand.            When the tail light bar is exposed to the wire conductor, the two power lines are peeled for about 10mm by a diagonal pliers and twisted into the wiring head for insulation protection.            To ensure waterproof and anticorrosion, after the power line is twisted into the wiring head, it is suggested that a single component of silica gel (or neutral glass glue, or water repellent grease) is injected into the wiring head to cover the exposed copper wire of the power line for protection.            The lamp can not be completely exposed in the open air.            It is recommended that the switch power supply (with short circuit protection, over voltage protection and over current protection) be passed through the relevant safety certification.            Seven. Packing Description:            Each carton is loaded into the 100pcs module.            The size of the carton: 1200*285*250;            The quantity and weight of the above packaging are only for graphic packing. There will be discrepancy in the quantity and weight of packages when other packages are used.            [cautions]            1. take care of light and light in transportation and handling;            2., it should not be applied in corrosive, inflammable and explosive places.            3. in order to avoid the danger of electric shock, please cut off the power supply during installation, commissioning and removal.            4. do not install near the heat source, so as not to increase the lamp temperature and damage the lamps and lanterns.            5. ensure that all joints are connected correctly and reliably.            6., without permission, the product can not be opened without permission.            7. disconnect the power when installing or disassembling maintenance.            8. if there is any doubt about this product, please consult with the engineer who holds the qualification certificate.
